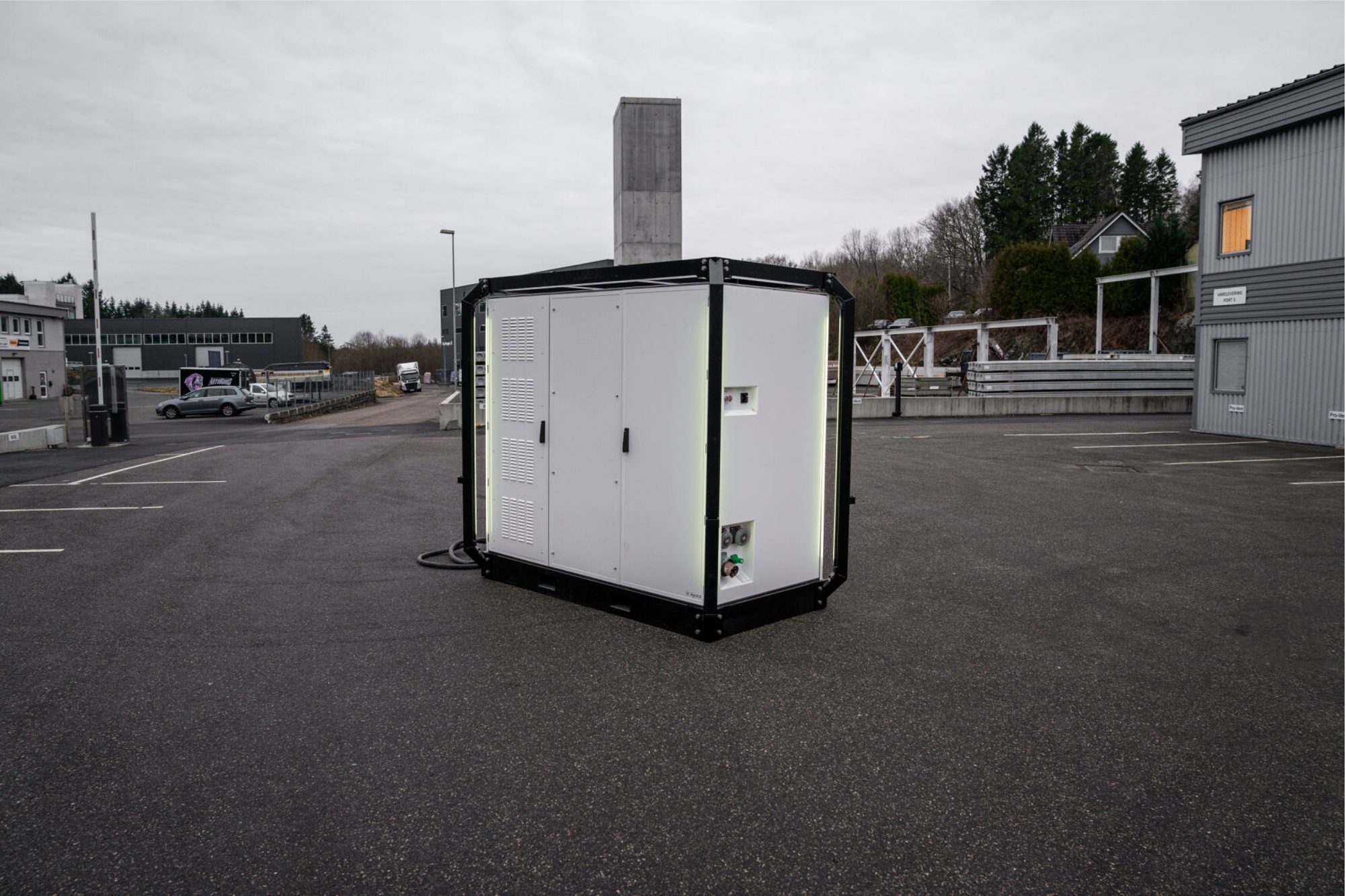

AIO 300

Energy supply and peak demand exceeds current grid capacity, causing congestion on the grid. With our battery-supported chargers you can change these peaks and store energy that makes supercharging available with weak grid.

Optional 2 X 63A utility outputs and 125A Bi-directional grid connection and can also be used as an ESS.

  • Island mode

  • Peak shave

  • Grid support

  • Flex

Product name

AIO 300

Energy storage

140-286 kWh

Charging

250 kW without grid, 300 kW with 80A grid

Input AC

400V 125A CEE

Lithium i-on

Battery type

400V 2x 63A CEE

Output AC

Backend

OCPP 1,6

2900 kg

Weight

Enclosure IP55 Double walled Alu

Certifications Battery:

CE, UN 38.3, IEC 61000-6-2/4,

IEC 62619, IEC 62477

System:

CE, IEC 61000-6-2, IEC 61000-6-4,

VDE-AR-N 4105:2018

IEC 50549-1

Charging

IEC 61851-23

IEC 61851-1, Mode 4

DIN SPEC 70121
